PilotLamp

The PilotLamp component can be used to display device status, alarms, etc.This article introduces the detailed configuration method of the indicator light component.


Private Properties​

Parameters
Description
Default value
Data SourceConfigurable data sourceskey1
View ModeOptional values: Color, PictureColor
Property NameCan be modified. When the obtained data value matches the name, the corresponding color/image will be displayed.key1

Node​

Parameters
Description
Default value
WidthOverall width100
HeightOverall height100
XHorizontal coordinate—
YVertical coordinate—

Application Examples​

The IoT status of the device is displayed through the indicator light component, and the corresponding color or picture can be configured according to the status.

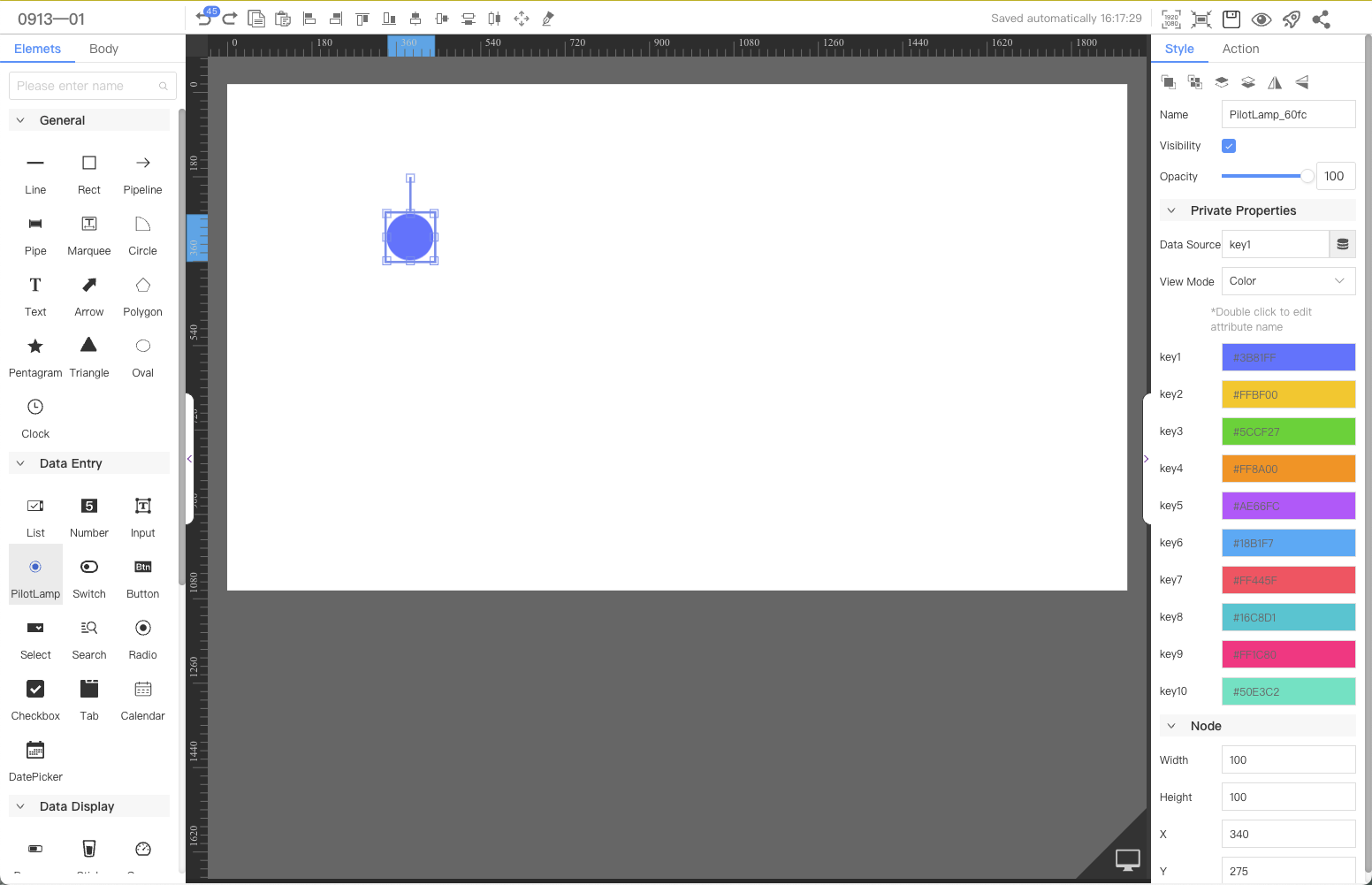

Step 1: Add components​

Above the component list on the left side of the canvas, enter Indicator Light, find the component, and then drag the component to the middle canvas. list_01

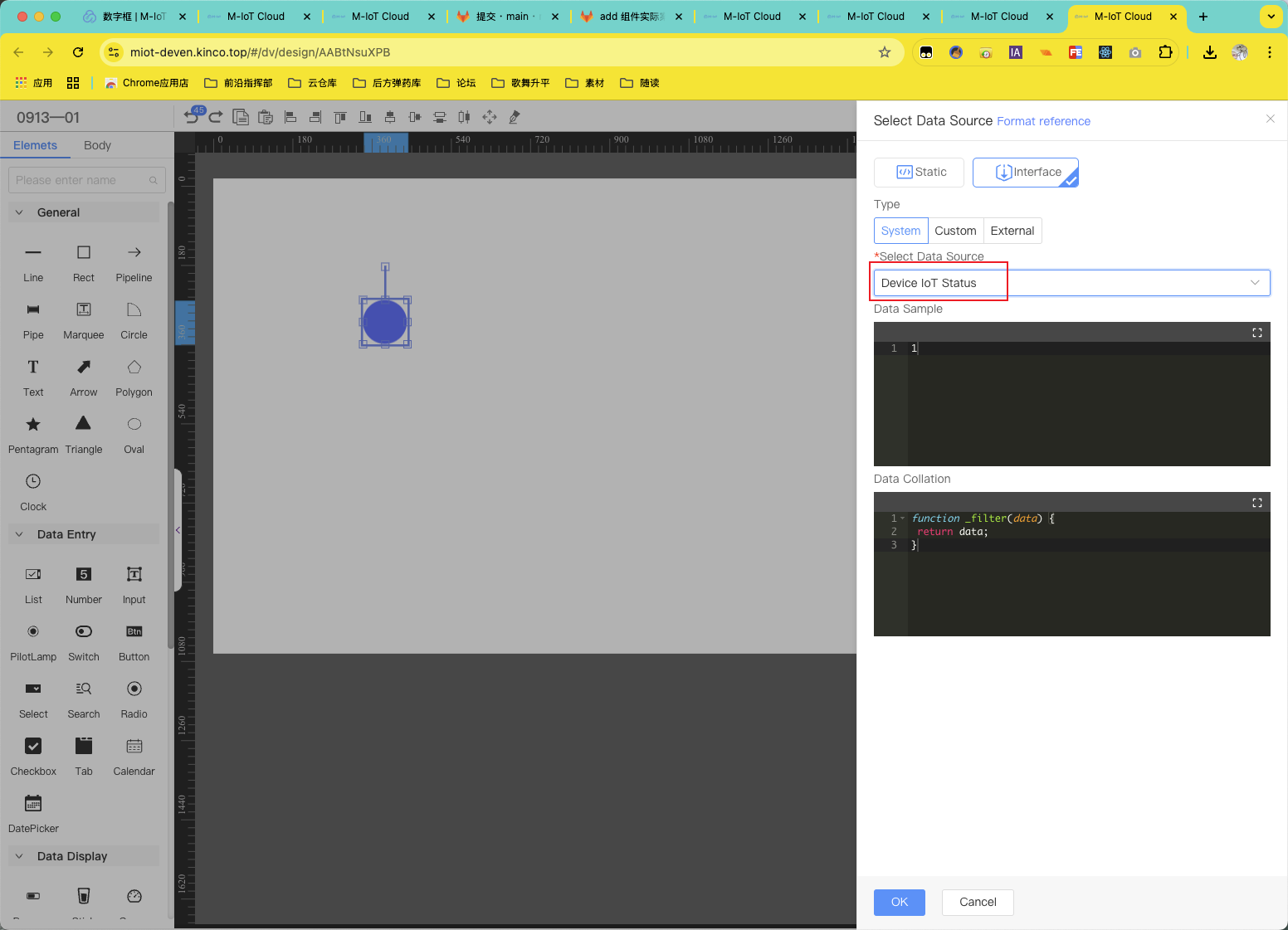

Step 2: Configure the data source​

When you need to use this component to display and set device properties, or display data returned by the interface, you need to configure the corresponding data source.

⚠️ Note

  1. The current case takes the banner page as an example, and the device needs to be specified; if it is a device page, there is no need to specify the device.
  2. The result returned by the data source must be a clear number or string value, such as:0, 1, "offline", "online".

list_01

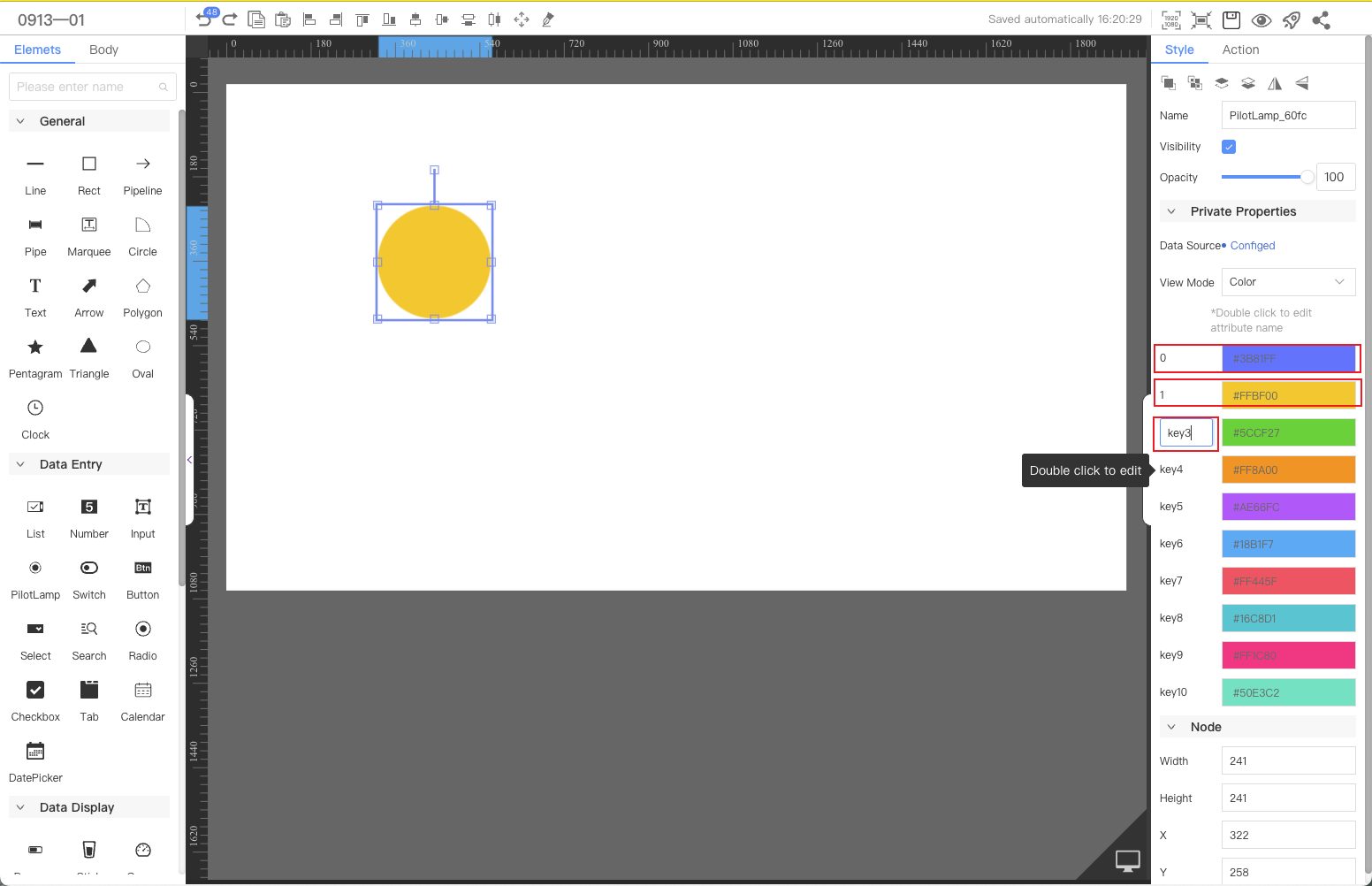

Step 3: Configure the style​

Dynamically configure the corresponding color or image based on the result returned by the interface.

Notes:If the device IoT status includes multiple situations, you can configure the corresponding color or picture for each state in turn.

list_01
